Advanced GNSS/GPS Anti-Jamming and Anti-Spoofing Module
The RG-M230 GNSS Anti-Jamming Antenna is an integrated, all-in-one navigation signal protection solution. It combines an anti-jamming antenna array, dedicated anti-interference processing module, and anti-spoofing receiver into a single, compact unit. Designed to deliver robust protection for satellite navigation signals, it effectively suppresses various types of interference and spoofing attempts, ensuring reliable, continuous positioning even in complex, contested electromagnetic environments.
Technical Specifications
Parameter | Specification |
Product Model | RG-M230 |
Product Composition | Includes anti-jamming antenna array, anti-interference processing module, and anti-spoofing interference receiver |
Antenna Array Elements | 16 elements |
Operating Frequency Bands | Band 1: BDS B1, GPS L1 & GALILEO E1Band 2: GLONASS G1Band 3: GPS L5Band 4: BDS B3Supports 16-channel anti-jamming for any single band (Band 1 by default) |
Anti-Jamming Performance | Single interference suppression: ≥110 dB15 simultaneous interferences suppression: ≥95 dB |
Power Supply & Consumption | Voltage: DC 12~36VPower consumption: ≤50W |
Environmental Adaptability | Operating temperature: -40℃~+65℃Storage temperature: -55℃~+85℃IP Rating: IP67 |

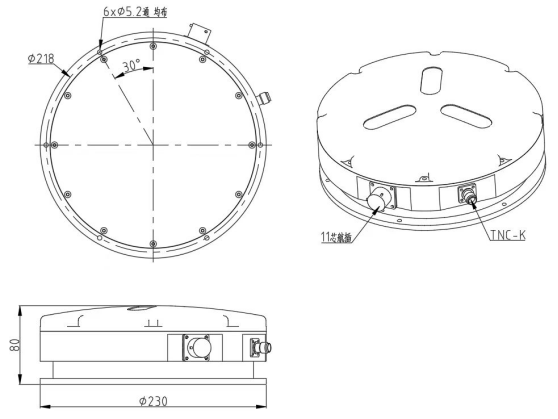

Structural Characteristics | Dimensions: Φ230mm × 80mmWeight: ≤3kg |
External Interfaces | Power supply: XCE18F11K1D1RF Output: TNC-K |
Installation & Usage Notes | Install with no obstructions around the product, mount close to metal structures for good heat dissipation. Pay attention to power line voltage drop during use, ensuring the voltage at the product end >18V. |
