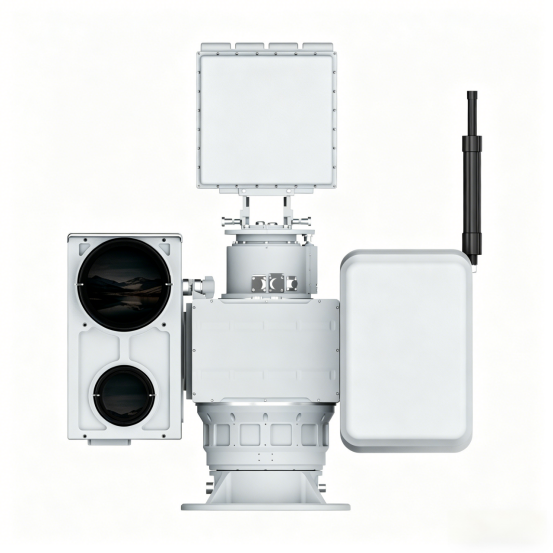

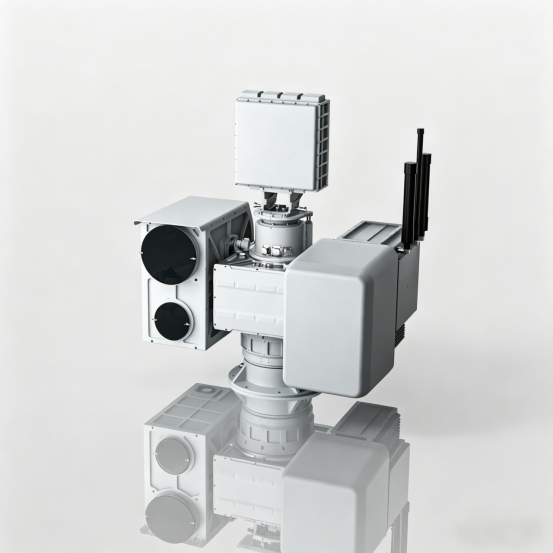

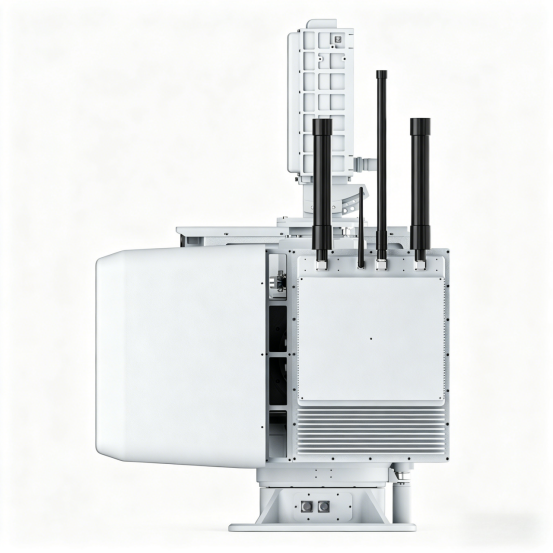

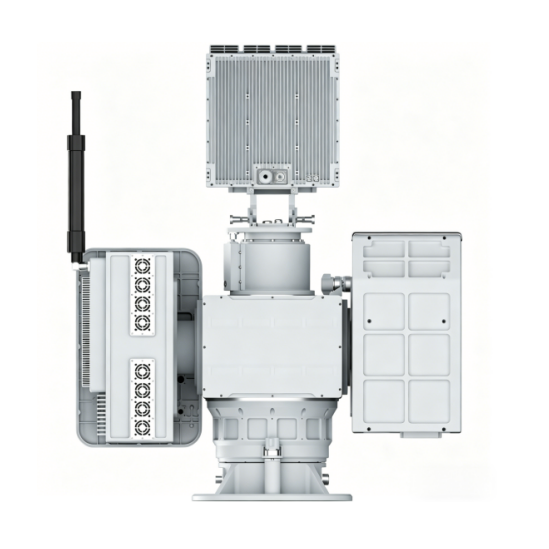

Radar-Vision Detection Interference, and Jamming Integrated Device

Radar-Vision Detection Interference, and Jamming Integrated Device

Key Benefits

Wide Detection Range
Full-Band Jamming
Omnidirectional Search
High-Precision Tracking

Brand:
Ragine

Availability:

Quantity:



Inquiry Add to Basket Download product datasheet

Radar-Vision Detection Interference, and Jamming Integrated Device

This integrated anti-drone system features wide-range detection, full-band jamming, omnidirectional search, and high-precision tracking capabilities.

Its radar achieves a detection range of ≥5 km for 0.01m² RCS targets and ≥7.5 km for 0.05m² RCS targets, with EO tracking up to ≥3 km for DJI drones under ideal conditions. The system supports mechanical 360° azimuth scanning (0°–30° elevation, configurable to 60°) and phased array scanning (-45°–45° azimuth), enabling all-round threat coverage.

For countermeasures, it provides 300 MHz–6 GHz full-band directional and FPV jamming, with 8 preset key frequencies and the ability to jam ≥6 bands simultaneously. Dual tracking modes support up to 4 targets at once, with high precision: distance accuracy <10 m, azimuth/elevation accuracy <0.6°, and turret stabilization ≤1 mrad.

Technical Specifications

Category	Parameter	Specification
Radar Detection Unit
Basic Attributes	Frequency Band	X Band (9.2GHz ~ 9.8GHz)
	Number of TAS Tracking Targets	≤4
Detection Performance	Detection Range	≥5km (RCS: 0.01m²); ≥7.5km (RCS: 0.05m²)
	Blind Zone	≤200m*
	Speed Range	1m/s ~ 100m/s
	Target Update Rate	≤3.5s (default for mechanical scanning/phase scanning)
Radio Detection Unit (optional integration supported)
Optical Tracking Unit
Detection Distance	(under good weather conditions, for DJI drones 0.35m×0.35m)	≥3km*
Infrared Thermal Imaging	Detector	Cooled vanadium oxide (VOx)
Visible Light Camera	Sensor	1/1.7" star-level CMOS
	Resolution	1920*1080
	Functions	wide dynamic range, strong light suppression, fog penetration, etc.
Directional Suppression Jamming
Interference Performance	Interference distance	3-5km*
	Number of simultaneously interfering frequency bands	≥6
Frequency Coverage		300MHz~6GHz full frequency band, preset key frequency points such as 433MHz/845MHz/915MHz/1.2GHz/1.4GHz/2.4GHz/5.2GHz/5.8GHz
FPV Suppression Unit
Interference Performance		600MHz~6GHz
FPV Interference distance		500m*
Omnidirectional Navigation Deception
Supported Frequency Bands		standard: GPS L1/GLONASS L1/BDS B1/GALILEO E1 (other frequency bands customizable)
Deception intrusion time		≤10s
Maximum operating distance		5km*
Turret Unit and Overall Machine Performance Parameters
Performance Indicators	Static error	0.05°
	Azimuth speed	≥80°/s
	Elevation speed	≥60°/s
	Data update rate	≥100 Hz
Load capacity		≥70kg
Installation method		Fixed, Vehicle-mounted
Protection Rating		IP65
