R-Eye-283
Ragine
Availability: | |
---|---|
Quantity: | |

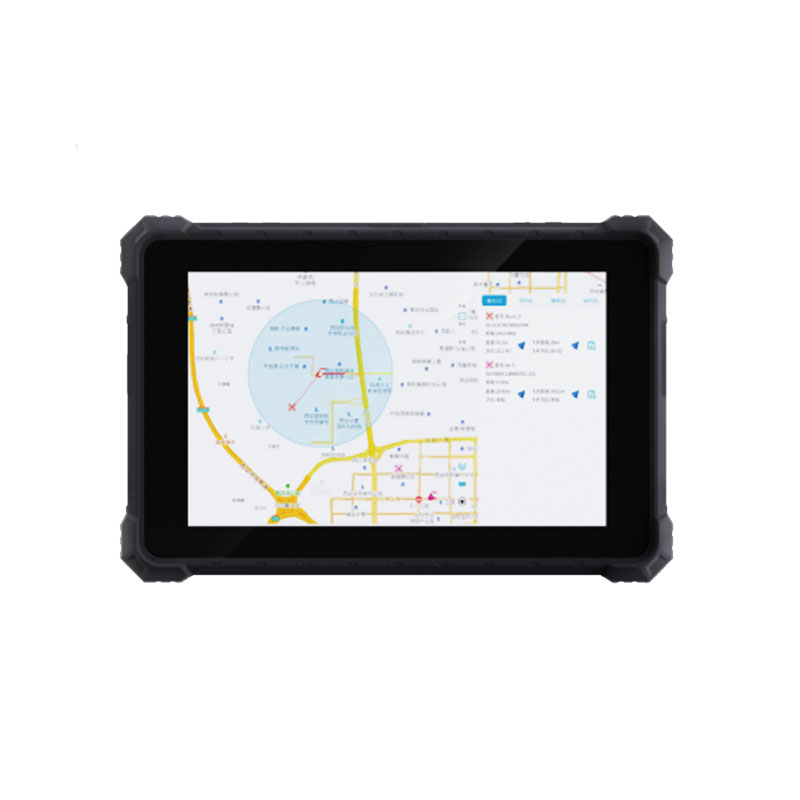

Full-Band Drone Early Warning Device
The product employs a multi-mode collaborative detection scheme, utilizing digital video transmission detection, analog video transmission detection, and message parsing technologies to effectively cover mainstream consumer drones and special models such as FPVs. The system supports simultaneous tracking of more than 10 targets with real-time flight trajectory display. Combined with high-precision positioning capabilities, it can detect drones within a 1km range and achieve positioning accuracy within 10 meters in open line-of-sight environments.
Detection Frequency Bands | 600MHz~6GHz |
Detection Mode | Message Parsing / Digital Image Transmission Detection / Analog Video Transmission Detection |
Detection Drone Types | Protocol Parsing: DJI O2/O3/O4 flight control protocols and National Standard (GB) message formats. Digital Image Transmission Detection: common consumer-grade drone models. Analog Image Transmission Detection:300MHz to 6GHz frequency range analog video transmission |
Detection Range | Digital Image ≥1km Analog Image ≥1km Message Parsing≥1km |
Screen Specification | 10.1-inch IPS touchscreen, 1920×1200 resolution, 700 cd/m² brightness |
Total Power Consumption | ≤12W |
Ingress Protection Rate | IP68 |
Working Tmeperature | -20~+55℃ |
Product Weight | ≤1150g |
Product Dimension | L*W*H:283mm*189mm*24.2mm |
