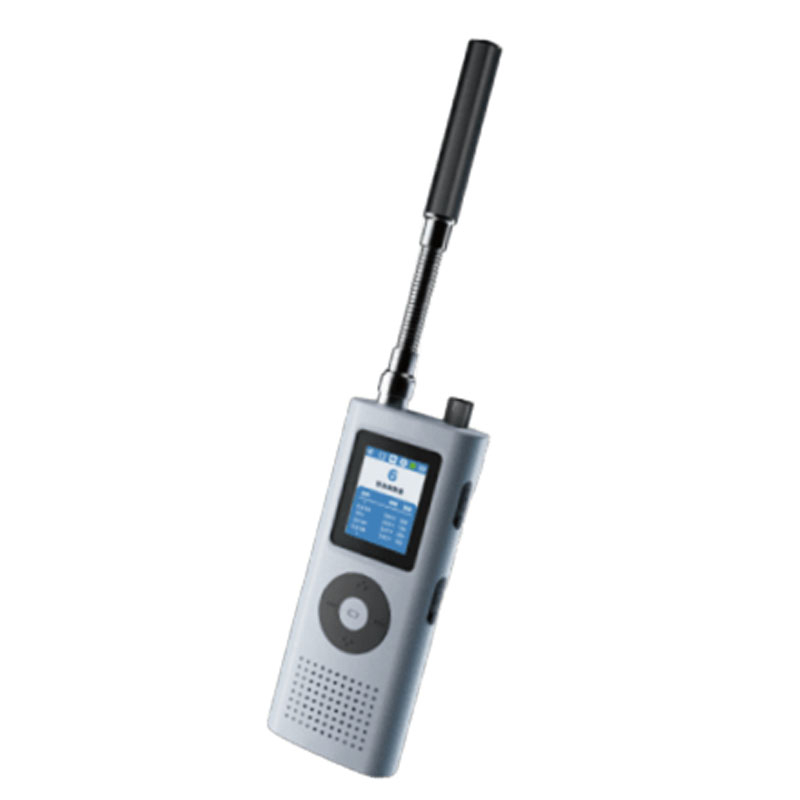

Full-Band Drone Early Warning Device
The product features a lightweight and portable design, weighing less than 300 grams, and can be operated with one hand. It automatically enters detection mode upon startup, making it ideal for rapid deployment and temporary missions. Its core strength lies in its adaptability to extreme environments — with an IP55-rated enclosure, it resists dust, rain, snow, and temperature variations ranging from -20°C to 55°C, ensuring stable operation in harsh conditions such as deserts and storms.
Detection Frequency Bands | 600MHz~6GHz |
Detection Mode | Digital Image Transmission Detection / Analog Video Transmission Detection |
Detection Drone Types | Digital Image Transmission Detection: common consumer-grade drone models. Analog Image Transmission Detection:300MHz to 6GHz frequency range analog video transmission |
Detection Range | Digital Image ≥1km Analog Image ≥1km |
Detection Feedback | 2.0-inch LCD, 240(H) × 320(V) resolution |
Total Power Consumption | ≤5W |
Ingress Protection Rate | IP55 |
Working Tmeperature | -20~+55℃ |
Product Weight | ≤300g（Excludes antenna） |
Product Dimension | L*W*H：176.5mm*68.8mm*34.26mm（Excludes belt clip and antenna） |
