Integrated Detection and Jamming Counter-UAV Gun

Full- band Detection-and-Jamming Integrated Counter- UAS SDR Jammer Gun

Full- band Detection-and-Jamming Integrated Counter- UAS SDR Jammer Gun

Name: Full- band Detection-and-Jamming Integrated Counter- UAS SDR Jammer Gun
Brand: Ragine
Rating: 5.0 (13 reviews)

Full- band Detection-and-Jamming Integrated Counter- UAS SDR Jammer Gun

Key Benefits

Intelligent Dual‑Mode Countermeasure
Long‑Range Detection & Early Warning
Flexible Deployment
High‑Efficiency Counter‑UAS

Model:
R-Warder-780B
Brand:
Ragine

Availability:

Quantity:



Inquiry Add to Basket

Full- band Detection-and-Jamming Integrated Counter- UAS SDR Jammer Gun

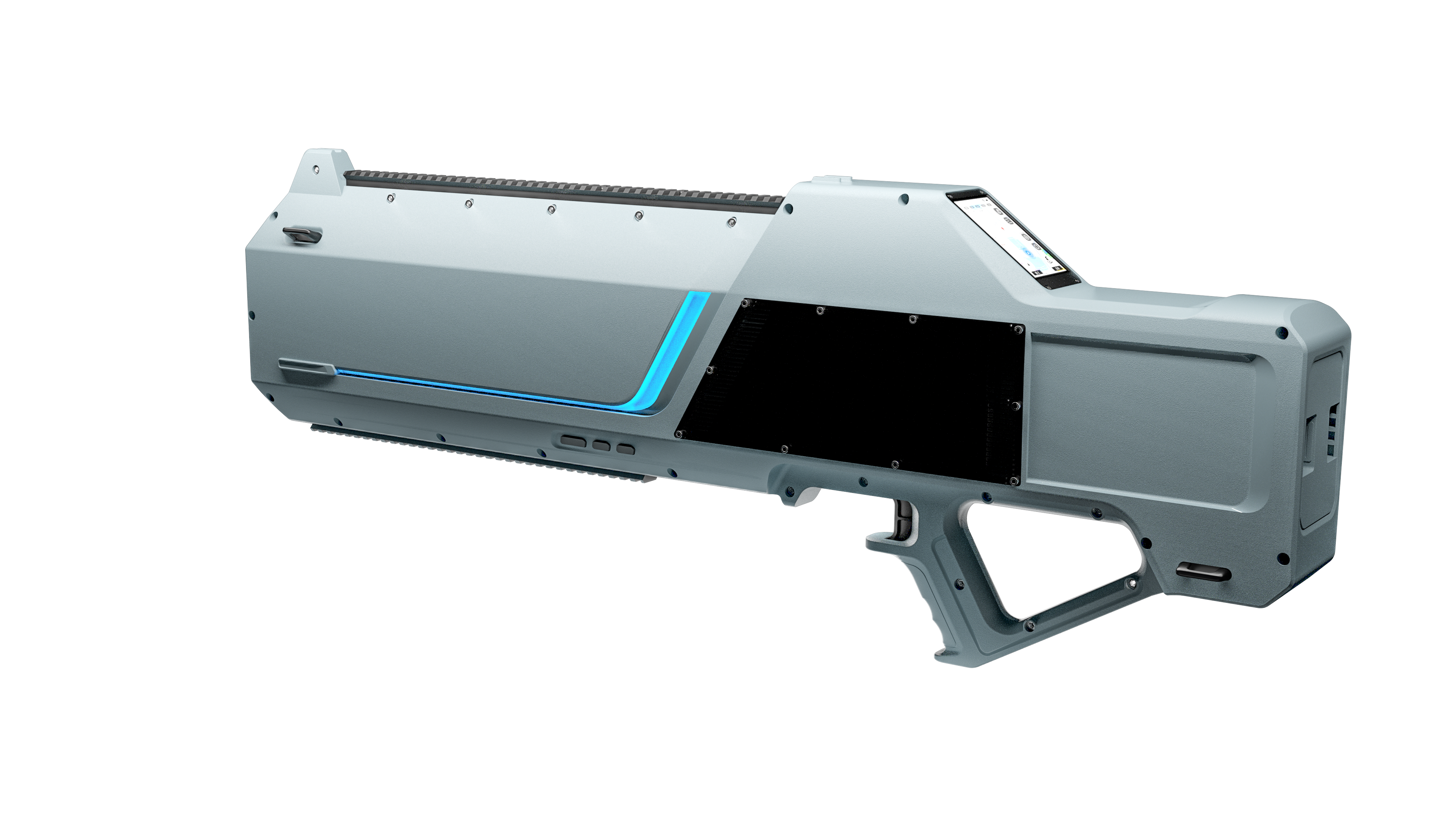

The full‑band detection‑and‑jamming integrated counter‑UAS gun is a UAV control device specially designed for low‑altitude security. It realizes rapid identification and countermeasure against illegally intruding UAVs via precise detection and high‑efficiency jamming technologies.

Its core advantage lies in the integration of both detection and jamming capabilities. It supports full‑band signal coverage from 300 MHz to 6 GHz, and can accurately identify mainstream consumer‑grade UAV models such as DJI and Autel. Adopting fixed‑frequency and write‑frequency dual jamming modes, it instantly cuts off the UAV control link.

Detection Frequency Band	300MHz-6GHz
Detection Mode	Packet parsing/ digital image transmission detection / analog image transmission detection
Detectable Models	Protocol parsing: DJI O2/O3/O4 flight control protocol models, national standard packet Digital image transmission detection: Common consumer-grade UAV models Analog image transmission detection: Analog image transmission models within 300MHz-6GHz frequency band
Detection Range	1km-2km*
Operating Time	Continuous detection ≥6h
Jamming Mode	Fixed-frequency jamming, frequency-programmable jamming
Jamming Frequency Band	Fixed-frequency jamming: 2.4GHz/5.8GHz/900MHz/1.5GHz(Customizable) Frequency-programmable jamming: 300MHz~6GHz
Jamming Range	≥1km*
Jamming Duration	Full-band jamming ≥30min
Network Configuration	WiFi and 4G IoT connectivity
Power Supply	Quick-release lithium battery (battery replaceable)
Display	Monitor: Shows device status, battery status, working status, detection information
Protection Level	IP65
Operating Temperature	-20℃~+55℃
Overall Dimensions	LWH: 873.8mm324.6mm91.75mm (±2mm)
Weight	≤8kg
