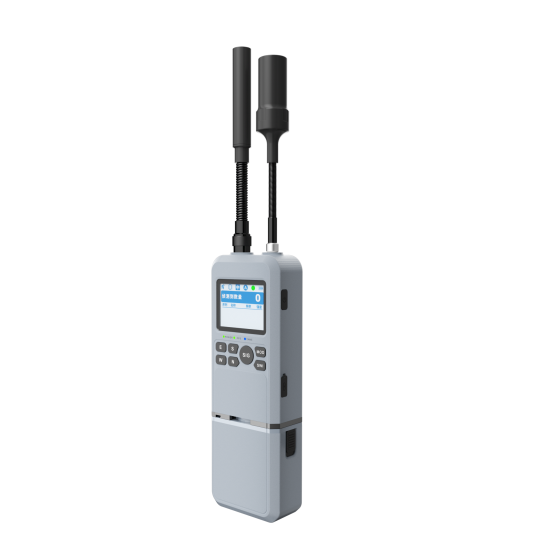

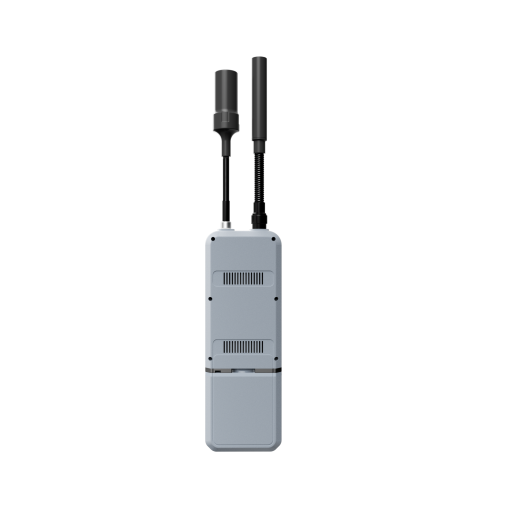

Handheld Detection and Navigation Spoofing Device
Full-frequency Band Coverage: Spanning the complete 300MHz to 6GHz spectrum, it supports detection of both FPV drones and all mainstream consumer-level models, ensuring no threat goes unnoticed.
Multi-frequency Navigation Spoofing: Standard-equipped with GPS L1 and GLONASS G1 bands, with customizable support for BDS B1, GALILEO E1, and other bands. It delivers reliable spoofing at a range of ≥1km*.
Long-distance Detection: Boasting extended detection ranges of ≥1.2km for mainstream consumer drones and ≥1.5km* for FPV analog video transmission signals, it enables early threat identification.
Dual-mode Early Warning System: A robust sound + vibration dual-alarm mechanism maintains an extremely low false-alarm rate, even in complex electromagnetic environments, ensuring reliable alerts when they matter most.
Technical Specifications
Category | Parameter | Specification |
Detection Unit Performance Parameters | Detection Frequency Band | 300MHz-6GHz |
Detection Range (Digital Image Transmission) | ≥1.2km* | |
Detection Range (Simulated Image Transmission) | ≥1.5km* | |
Spoofing Unit Performance Parameters | Spoofing Mode | Navigation Spoofing |
Supported Frequency Bands | Standard: GPS L1, GLONASS L1; Customizable: BDS B1, GALILEO E1 | |
Spoofing Effective Distance | ≥1km* | |
Strategy Support | Linear mode / Circular driving | |
Overall Performance Parameters | Overall Power Consumption | ≤15W |
Power Supply Mode | Battery powered, supports swapping | |
Standby Time | ≥4h | |
Working Temperature | -20℃ ~ +55℃ | |
Product Weight | 710g (±5g) | |
Product Size | 223mm*77mm*42mm ± 2mm (without antenna) |
