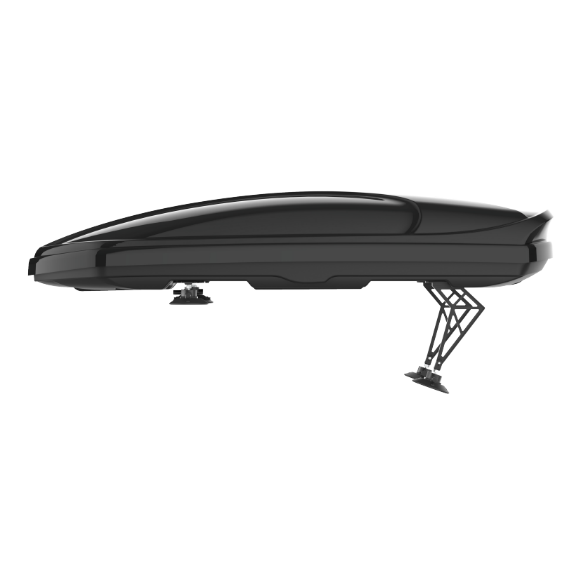

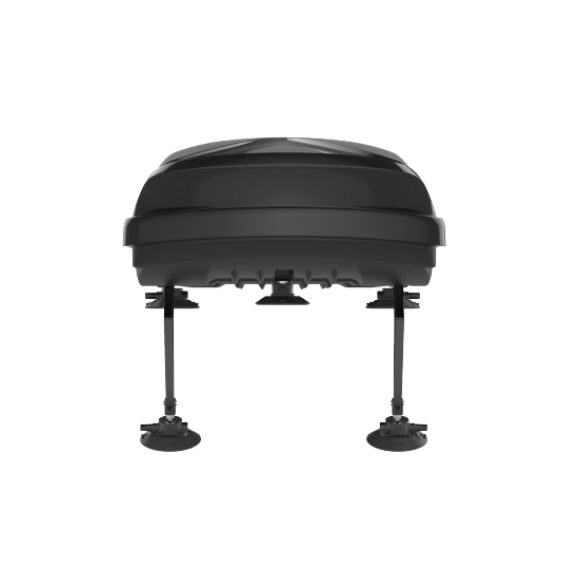

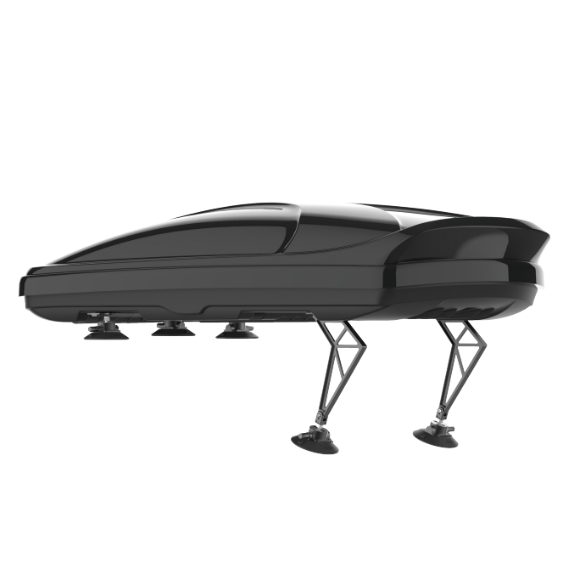

Vehicle-mounted Detection, Jamming and Spoofing Suitcase System

Name: Vehicle-mounted Detection, Jamming and Spoofing Suitcase System
Brand: Ragine
Rating: 5.0 (92 reviews)

Vehicle-mounted Detection, Jamming and Spoofing Suitcase System

Key Benefits

Integrated Functions
Powerful Full‑Band Detection
Adaptive Jamming
Superior Deception Capability

Model:
RG-VRT1000-011
Brand:
Ragine

Availability:

Quantity:



Inquiry Add to Basket

Full- band Detection-and-Jamming Integrated Counter- UAS SDR Jammer Gun

The vehicle‑mounted detection‑jamming‑deception suitcase is a vehicle‑borne counter‑UAV equipment integrating detection, jamming and navigation deception. It can rapidly implement full‑process disposal of low‑altitude UAVs to meet mobile security requirements for multiple scenarios.

Featuring full‑band detection covering common UAV communication frequency bands, combined with adaptive jamming and multi‑mode navigation deception functions, it can accurately identify and effectively counter mainstream UAVs. It operates stably in no‑network or weak‑network conditions with wide environmental adaptability and reliable performance under high‑ and low‑temperature environments. The vehicle‑mounted design enables flexible deployment and rapid emergency response.

Item	Specification
Working Mode	Detection, Jamming, Spoofing
Detection Unit
Detection Capability	Protocol: DJI O2, O3, O4 flight control protocol UAVs Digital RC & Analog Video Detection: 300MHz–6000MHz Digital Video Detection: DJI, Autel and other common UAV models
Detection Range	Protocol: 0–5 km (Supports RID & DID; varies by model and environment) Digital/Analog Video Detection: 3 km
Detection Feedback	Identifies UAV type and triggers sound & light alarm
Detection Frequency	300MHz–6GHz
Jamming Unit
Supported Bands	Fixed: 2.4G / 5.2G / 5.8G
Supported Bands	Programmable: 0.3G–6G
Jamming Range	Omnidirectional Analog: ≥500 m (0.5W 5.8G FPV)
Jamming Range	Omnidirectional Digital: ≥1–3 km (depending on environment and UAV model)
Spoofing Unit
Supported Bands	GPS L1, GLONASS L1, BDS B1, Galileo E1
Effective Range	3–5 km (customizable)
Modes	Circular Mode, Linear Mode
General Parameters
Operating Temperature	-20°C to +55°C
Power Consumption	≤3800 W
Power Supply	Vehicle Power / AC 220V
Dimensions	173 × 82 × 41 cm (excluding bracket and antennas)
