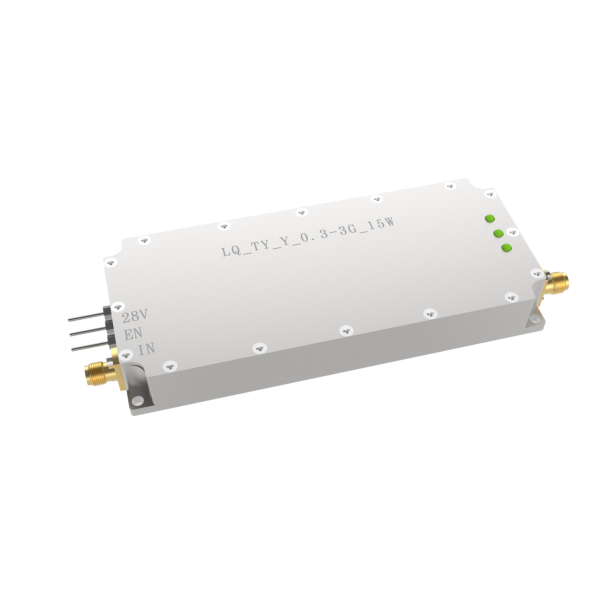

300MHz-3000MHz 15W Power Amplifier Module for Counter UAV

Name: 300MHz-3000MHz 15W Power Amplifier Module for Counter UAV
Brand: Ragine
Rating: 5.0 (85 reviews)

300MHz-3000MHz 15W Power Amplifier Module for Counter UAV

This power amplifier module operates within a broad frequency range of 300MHz to 3000MHz, making it highly versatile for various RF and wireless communication applications. It is designed to deliver high power output, ensuring stable signal amplification with low distortion.

Key Benefits

Reliable Performance
Wide Operating Frequency Range
Efficient and Stable Power Amplification

Model:
R-Moudle-15
Brand:
Ragine

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Technical Specifications

Parameters	Min	Type	Max	Notes
Frequency Range (MHz)		300MHz~3000MHz
Gain (dB)	44	46	47
Saturation Output Power (dBm)	41.5	42	43.2
Input VSWR		≤ 2.0
Output VSWR		≤ 2.0
Characteristic Impedance		50Ω
Supply Voltage	27V	28V	30V
Operating Current	1.8A	2.2A	2.4A
In-Band Flatness		±2dB
Output Signal Range		-3dBm~0dBm	0dBm
Operating Temperature	-40℃	25℃	55℃	Requires good heat dissipation
RF Interface (Input)		SMA-KFD198A
RF Interface (Output)		SMA-KFD198A
Enable Control Switch (Through Capacitor)		3.3V
Power Supply Input (Through Capacitor)		28V
Weight		≤ 245g
Module Dimensions (mm)		1195115.5		±0.2mm
