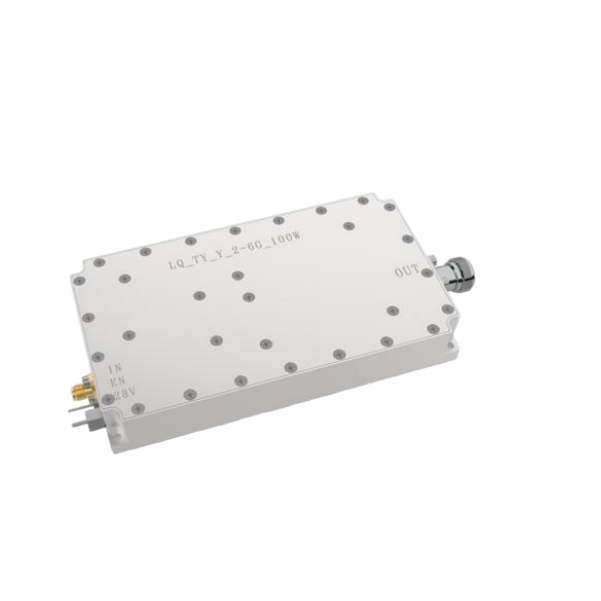

Drone Signal Disruption 2G-6GHz 100W Power Amplifier Module
Technical Specifications
Parameters | Min | Type | Max | Notes |
Frequency Range (MHz) | 2000MHz~6000MHz | |||
Gain (dB) | 49 | 53 | 55 | |
Saturation Output Power (dBm) | 48.5 | 50 | 50.5 | |
Input VSWR | ≤ 2.0 | |||
Output VSWR | ≤ 2.0 | |||
Characteristic Impedance | 50Ω | |||
Supply Voltage | 27V | 28V | 30V | |
Operating Current | 9.2A | 10A | 11.5A | |
In-Band Flatness | ±2dB | |||
Output Signal Range | -3dBm~0dBm | 0dBm | ||
Operating Temperature | -40℃ | 25℃ | 55℃ | Requires good heat dissipation |
RF Interface (Input) | SMA-KFD198A | |||
RF Interface (Output) | N-KFD6 | |||
Enable Control Switch (Through Capacitor) | 3.3V | |||
Power Supply Input (Through Capacitor) | 28V | |||
Weight | ≤ 280g | |||
Module Dimensions (mm) | 172.4*86*25 | ±0.2mm |
