R-Eye-308A
Ragine
Frequency bands: | |
---|---|
Availability: | |
Quantity: | |

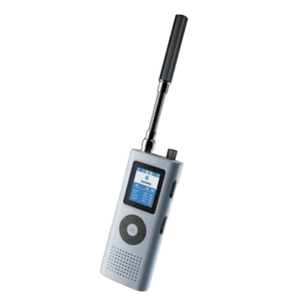

The Thunder Eagle SC 003 is a handheld drone detection device, using t
The external UWB antenna can detect and expand the full frequency band FPV on the market DJI, Autel and other commonly used consumer drones to achieve rapid detection and through the sound, Light and other early warning, at the same time in the complex electromagnetic environment to achieve extremely low virtual Police rate.
It has uav detection spectrum and full frequency band FPV analog map transmission signal sense. The device can be accurate by analyzing the depth of the drone signals. Spectrum information and FPV map transmission signal of the uav in the detection and early warning range.
The equipment is suitable for all kinds of uav detection and countermeasures in the airspace With fast response, mobile deployment, not affected by network conditions and other advantages provide reliable guarantee for low -altitude security.
Product parameters | |
Working mode | With frequency spectrum detection / FPV analog map transmission signal detection |
Detecting range | DJI, Daotong and other commonly used consumer drones 1km (different environment and model differences) FPV analog map transmission signal detection of 2km (difference between environment and model) |
Full-band FPV and DJI, Daotong and other common consumer drones | |
Detecting feedback | When the UAV is detected, the UAV type is feedback to trigger the acoustic and optical vibration alarm |
Detecting frequency band | 600MHz -6.2GHz |
Screen specifications | 2.0 inch LCD /240(H )RGB x 320(V ) |
Whole machine power consumption | ≤5w |
Power supply mode | Built-in 7.4V 3000mAh lithium battery |
Working temperature | -20~+55℃ |
Protection level | IP 55 |
Battery life | 4.5H (working status) |
Product weight | 300g (excluding the antenna) |
Product size | 176.5*68.8*34.26mm (excluding back cli p and antenna) |
