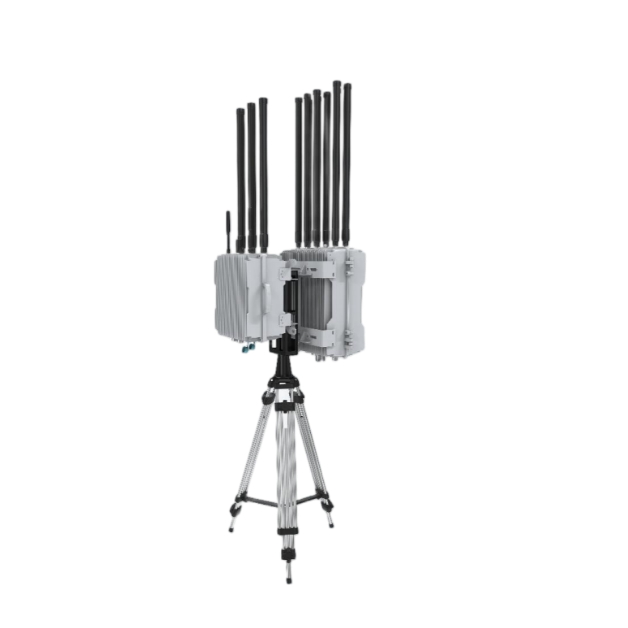

Fixed Type Detection & Jamming Device
This system provides full-band drone detection from 300 MHz to 6 GHz, with jamming coverage across 433 MHz, 900 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, and 5.8 GHz. It integrates drone detection, video interception, and jamming in a single system, supporting multiple detection modes including message parsing, digital video transmission, analog video transmission, and video interception. With 360° horizontal omni-directional jamming and an elevation coverage of ≥30°, it provides comprehensive detection and countermeasure capabilities against drones.
Item | Specification |
Detection Frequency Band | 300MHz-6GHz |
Detection Mode | Message Parsing / Analog Video Transmission Detection / Digital Video Transmission Detection / Analog Video Transmission Video Interception |
Detection Distance | Message Parsing: ≥3-5km |
Supported Drone Models | Protocol Parsing: DJI O2/O3/O4 flight control protocol models, national standard messages |
Detection Feedback | When a drone is detected, relevant drone information, sound and flashing light alarms will be triggered according to the drone type and model |
Jamming Frequency Band | 433MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz |
Jamming Distance | ≥1.5-3km (varies with environment and drone model) |
Power Consumption | ≤1200W (full load state) |
Power Supply Mode | AC 220V |
Operating Temperature | -20℃~+55℃ |
Protection Rating | IP65 |
Other Functions | When paired with the host computer, it supports functions including black & white lists, track playback, event recording, and access to the IoT general control platform |
Product Size | Detection Box: 355mm*351mm*186mm(±5mm) (excluding adapters and antennas) |
